Heat Treat Package — Hot Shot HS-360D Dual-Chamber Oven & Haas Rockwell Hardness Tester — SOLD

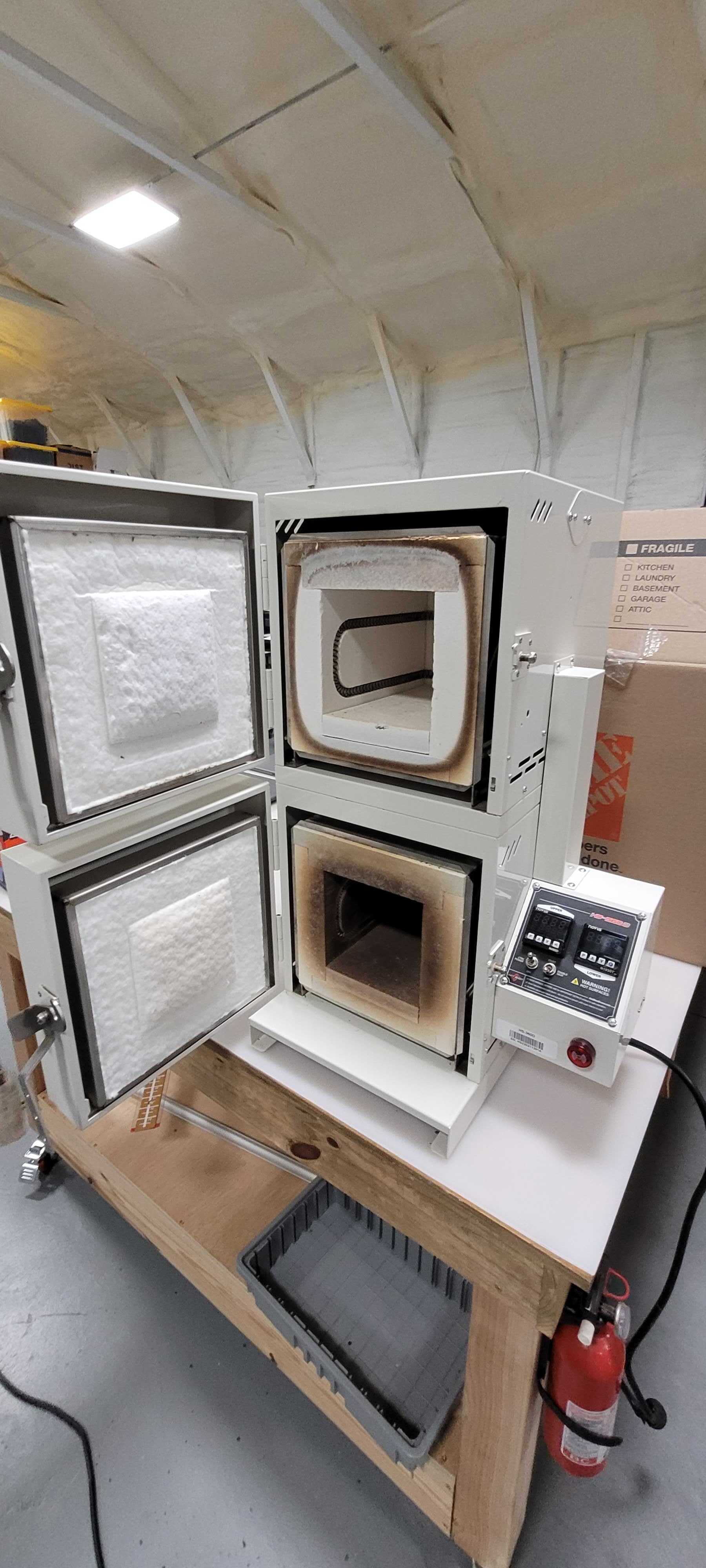

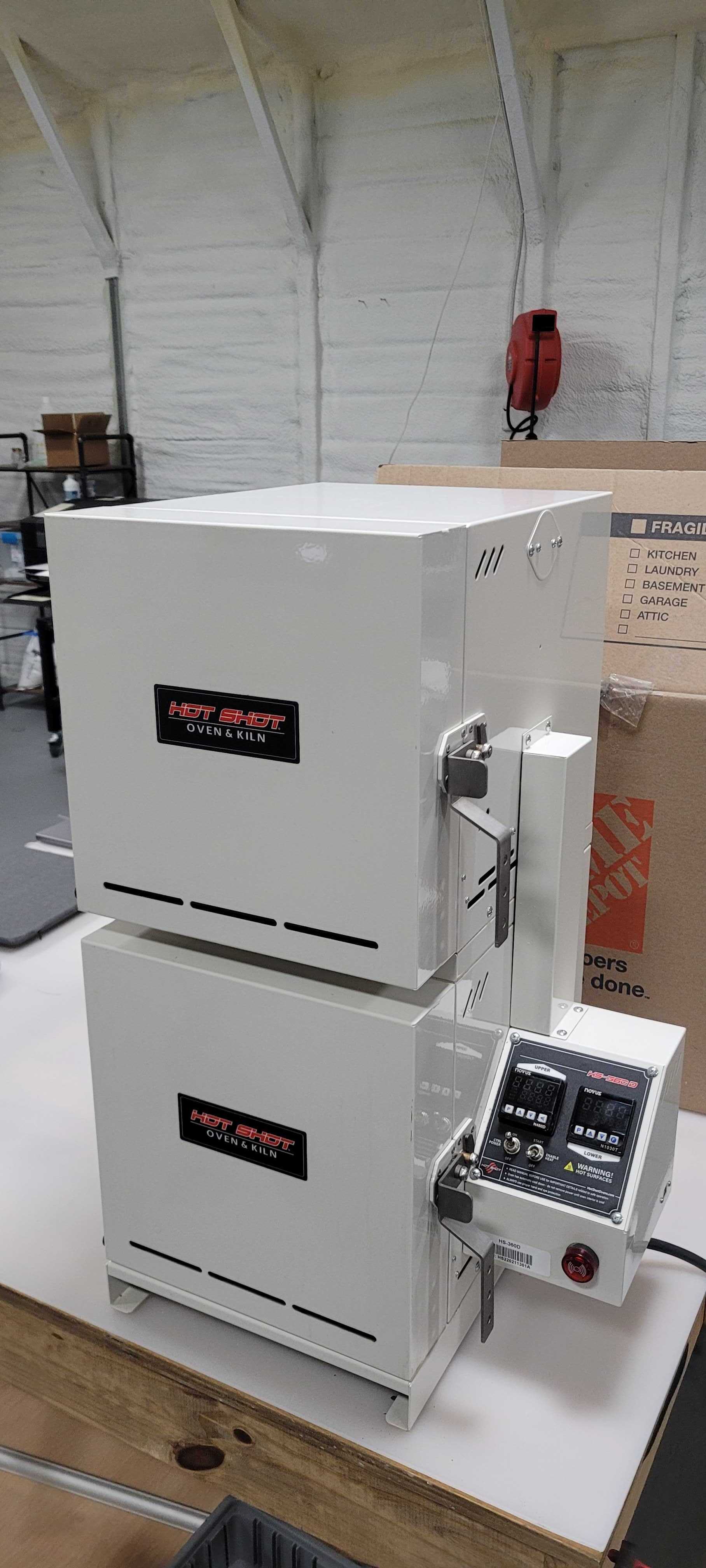

A complete in-house heat treating and verification setup, sold as one package. The Hot Shot HS-360D is a dual-chamber, table-top heat treating oven — the upper chamber hardens to 2000°F and the lower chamber tempers to 600°F, each with its own programmable PID controller. Running both chambers at once means you can harden and temper in a single session without waiting on one oven to ramp back down.

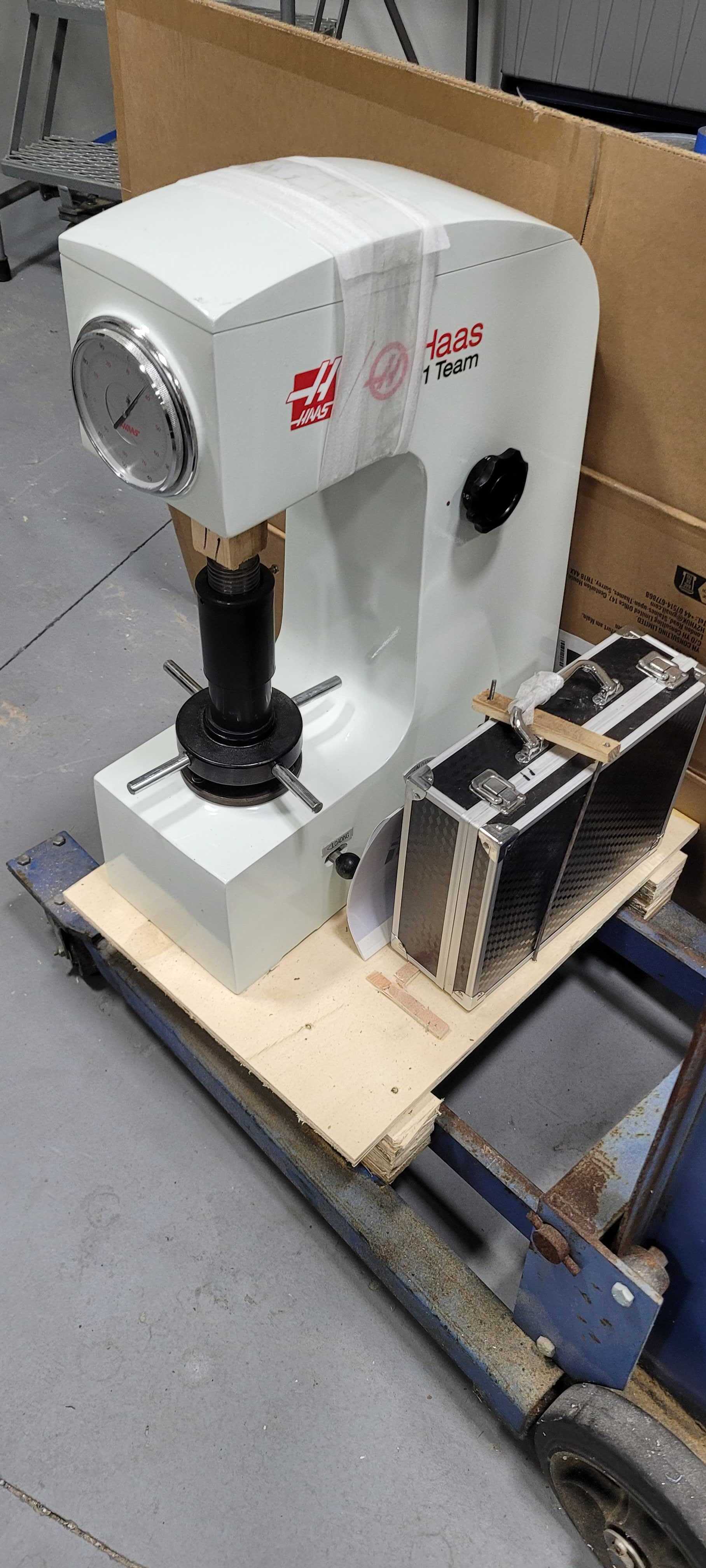

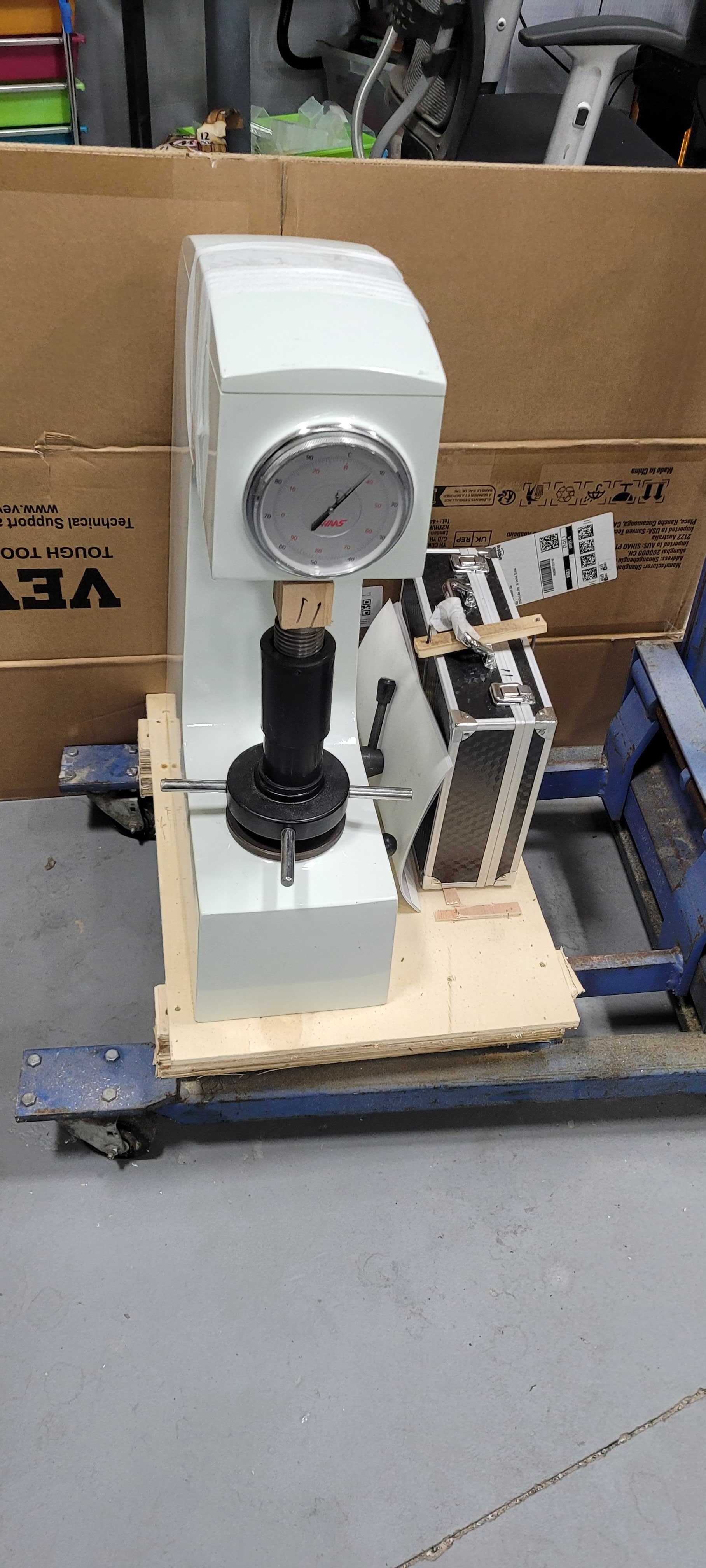

The Haas 09-0698 Dial Rockwell Hardness Tester is the other half of the loop — it is what tells you the heat treat actually worked. Manual loading, direct HRB and HRC readout, 60/100/150 kgf test forces, and it comes with the full factory accessory kit: both indenters, three anvils, and eight calibration test blocks. It is brand new, never used, and has never come off its shipping skid.

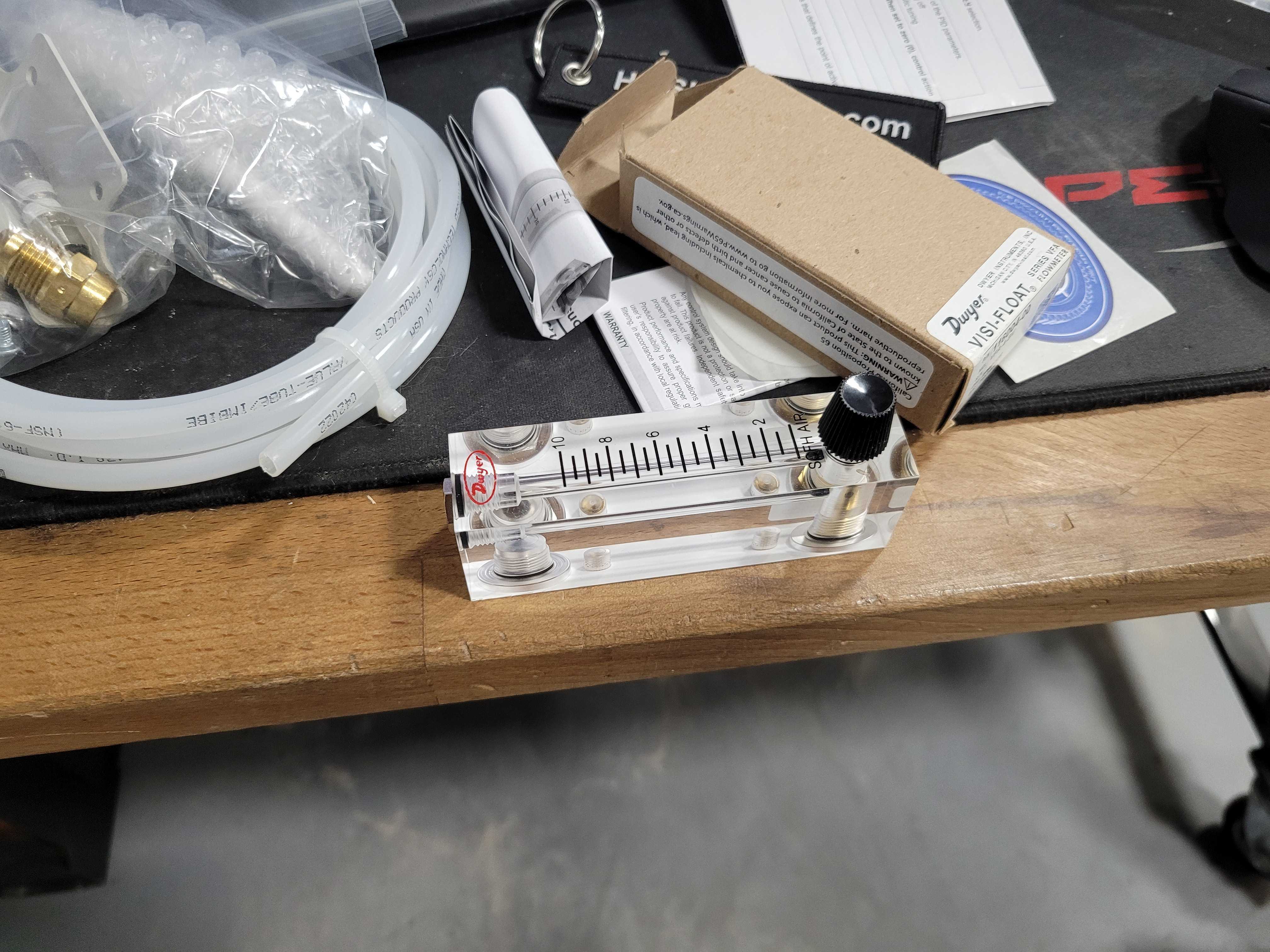

Also included at no extra cost is the Hot Shot argon gas kit — a $246 option we bought alongside the oven and never installed. It is complete and unused, with the Dwyer Visi-Float flowmeter, tubing, fittings, and ceramic dispensing needle. Argon flooding lets you run bright, scale-free heat treats without foil wrap.
Both machines run on ordinary shop power. The oven needs a single 120V 20-amp circuit; the tester needs no power at all.
- ✓ Hot Shot HS-360D dual-chamber heat treating oven (120V)
- ✓ Hot Shot argon gas kit — Dwyer Visi-Float flowmeter, tubing, fittings, ceramic dispensing needle (never installed, $246 option)
- ✓ Haas 09-0698 Dial Rockwell Hardness Tester — new, never used
- ✓ 120° diamond cone indenter and 1/16″ steel ball indenter
- ✓ Three anvils — 60 mm flat, 150 mm flat, 41 mm V-anvil
- ✓ Eight calibration test blocks — 2 HRA, 3 HRBW, 3 HRC
- ✓ Accessory hard case, dust cover, center level, factory inspection certificate
- ✓ Original invoices for both machines and the argon kit
| Max temperature — upper | 2000°F (1093°C) |
| Max temperature — lower | 600°F (315°C) |
| Chamber size (each) | 6″ W × 6″ H × 10″ D — 360 in³ |
| Power required | 120V, 60 Hz, 20-amp circuit |
| Element power | 1800W upper / 400W lower |

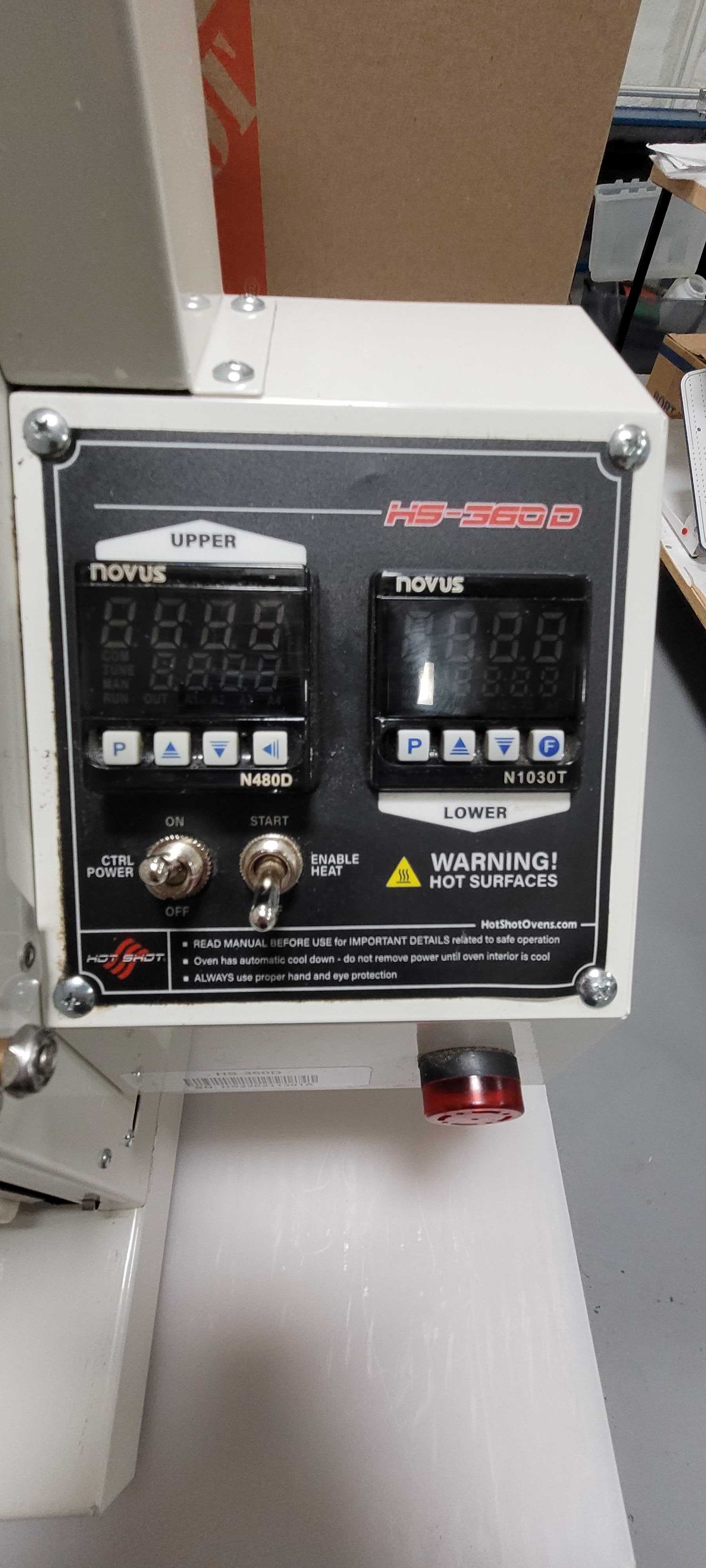

| Controllers | Novus N480D (upper), Novus N1030T (lower) — programmable PID |
| Heat-up time | Approx. 23 minutes to temperature |
| Thermocouple | Type K |
| Safety | Failsafe over-temp manual reset thermostat, 40A SSR with convection heat sink |
| Other | USB port for programming, CoolTouch exterior |
| Part number | 09-0698 |
| Type | Dial Rockwell, manual loading |
| Scales | HRB & HRC direct — HRA, HRD, HRE, HRF, HRG, HRH, HRK via conversion |
| Test forces | 60, 100, 150 kgf — 10 kgf preliminary |
| Max specimen height | 6.7″ (170 mm) |
| Throat depth | 5.1″ (130 mm) |
| Max specimen weight | 66 lb (30 kg) |
| Overall size | 18.0″ × 9.4″ × 24.8″ |
| Weight | 165 lb net |
| Power required | None — fully manual |
Hardness tester is brand new. Oven has seen light use and works correctly.
- Hardness tester — new, never used, still wrapped and on its original shipping skid. Accessory case unopened.
- Oven — light use, both chambers fully functional, both controllers working

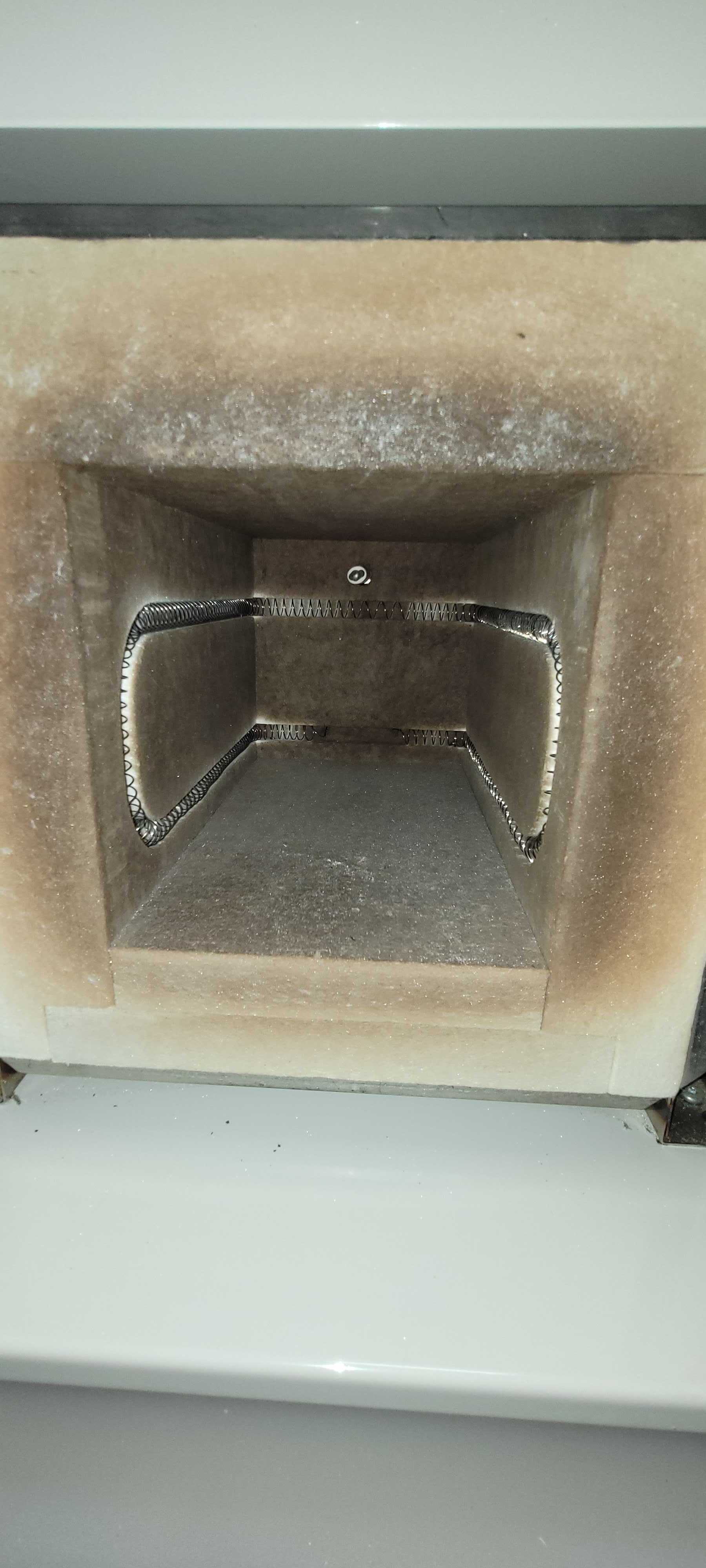

- Oven firebrick shows normal discoloration and light staining from firing — cosmetic, not a defect

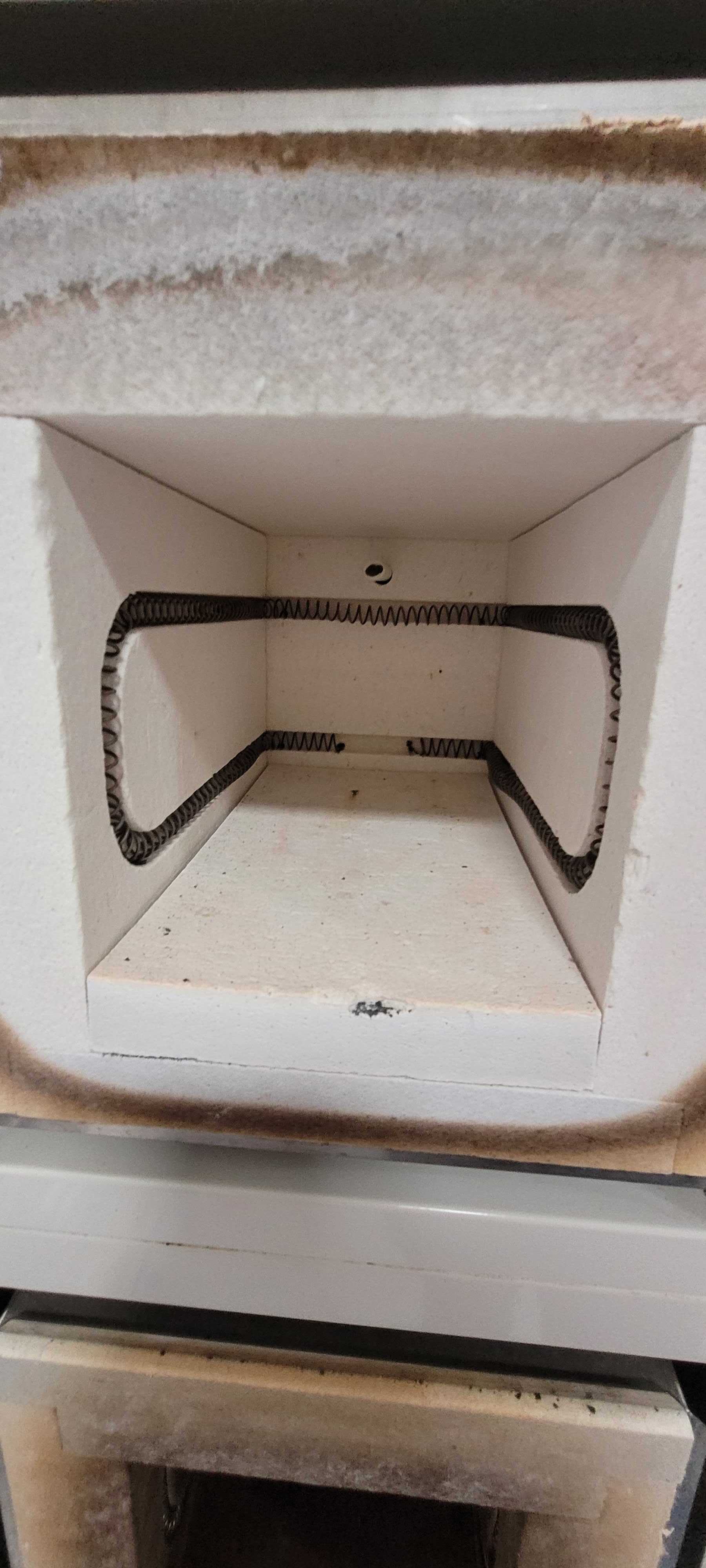

- Heating elements intact in both chambers
- Argon gas kit — new in box, never installed on the oven
- No known issues with either machine
